| Algemeen |
| Processormodel | Intel Core i5 (13. Gen.) 13500 / 24 MB Intel Smart Cache, max. 4.8 GHz Intel Turbo Boost Technology |
| Besturingssysteem | Windows 11 Pro |
| Software |
| Voorgeïnstalleerde software | 30 Dagen testversie voor Microsoft® 365 nieuwe klanten. |
| Processor |
| Processorfamilie | Core i5 |
| Aantal processorkernen | 14-Core |
| Processor socket | FCLGA1700 Socket |
| Geheugen |
| Intern geheugen | 16 GB |
| Geheugenlayout | 2 x 8 GB |
| Maximum intern geheugen | 128 GB |
| Kloksnelheid geheugen | PC4800 MHz |
| Intern geheugentype | DDR5 SDRAM |
| Geheugenslots | 4 stuk(s) |
| Geheugen form factor | DIMM 240-PIN |
| Opslagmedia |
| Totale opslagcapaciteit | 480 GB |
| HDD interface | 4x Serial-ATA III 600 (up to 6GBit/s), NCQ, AHCI, RAID 0/1/5/10 • 2x M.2 2280 (Key-M) for PCIe/NVMe SSD modules incl. NVMe RAID 0/1 Support |
| Soorten RAID | RAID 0 RAID 1 RAID 5 RAID 10 RAID 1 RAID 5 RAID 10 |
| Aantal storage drives geïnstalleerd | 1 |
| SSD interfaces | SATA-3 |
| SSD capaciteit | 480 GB |
| HDD capaciteit | 1x 480 GB SSD |
| Aantal storage drives ondersteund | 7 stuk(s) |
| Opslagmedia | SSD 2.5 |
| Prestatie |
| Markt positionering | Marathon Industry |
| Audio-uitgangskanalen | 5.1 Channel Surround |
| Chipset moederbord | Intel R680E |
| Audiosysteem | High Definition Audio |
| Design |

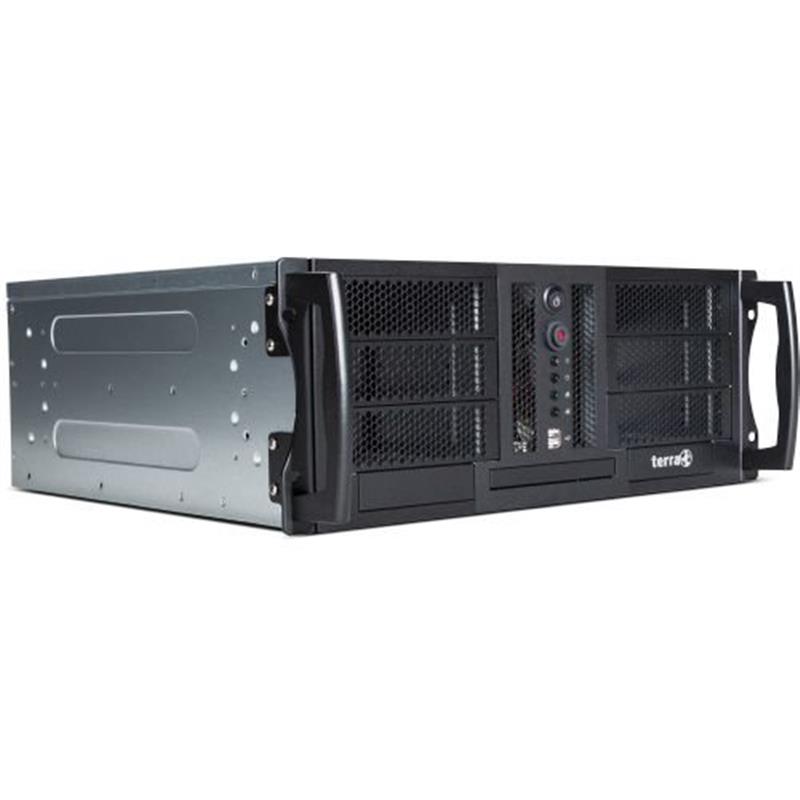

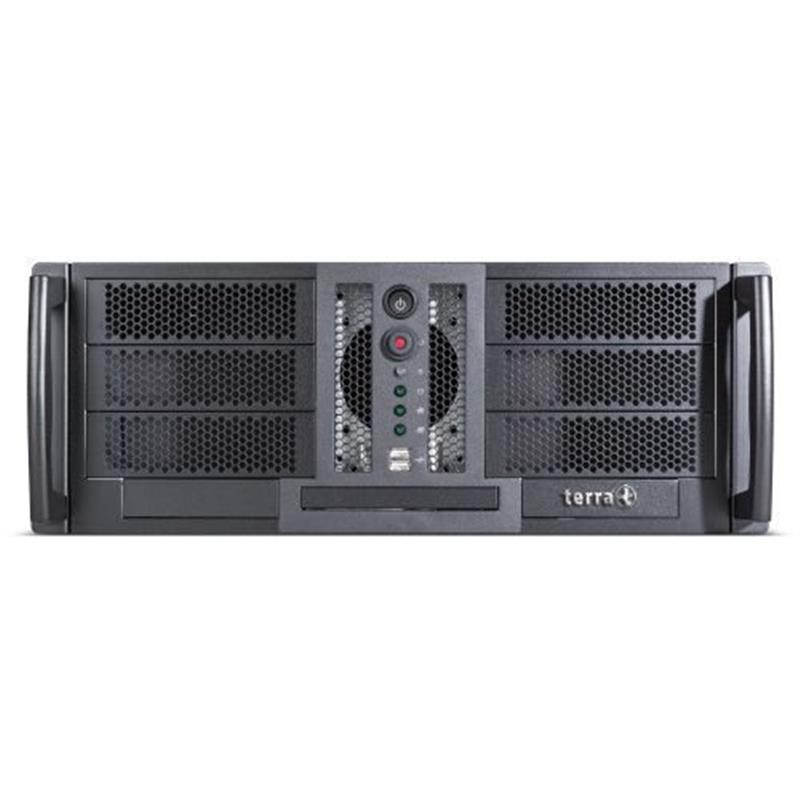

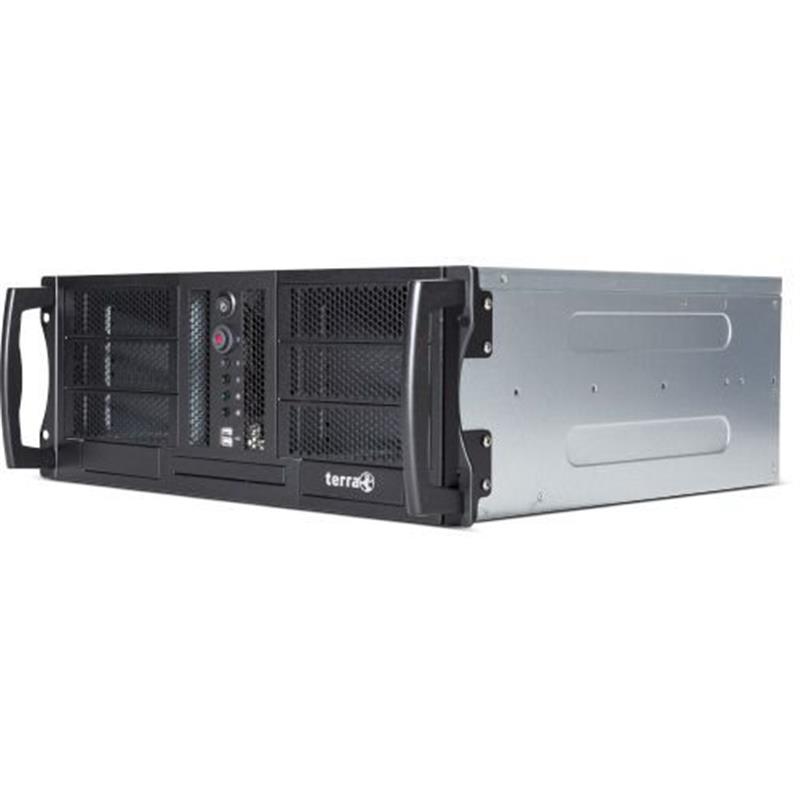

| Type behuizing | 19 Rack - mountable 4HE |
| Certificering | Assemblierung volgens ISO9001 in Duitsland Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC |
| Toetsenbord formaat | Optioneel |
| Toetsenbord |
| Taal toetsenbord | optioneel |
| Aansluiting | USB PS/2 |
| Technische details |
| Land | International |
| Inhoud van de verpakking |
| Meegeleverde kabels | Handboek, voedingskabel |
| Taal toetsenbord | Optioneel. Geen toetsenbord inbegrepen. |
| Uitbreidingsmodules |
| Uitbreidingsslots | 1x PCIe x16 Gen5, 1x PCIe x16 @ x4 Gen4, 1x PCIe x8 @ x4 Gen4 open slot, 1x PCIe x8 @ x4 Gen3, 2x PCIe x1 Gen3, 1x PCI 32Bit (via PCI to PCIe Bridge) |
| Gewicht en omvang |
| Hoogte | 17.6 |
| Breedte | 43 |
| Diepte | 44.5 |
| Gewicht | 15 kg |
| Overige specificaties |
| Aantal drive bays | 6 voor toegankelijk - 13.3 cm ( 5.25 ) 2 voor toegankelijk - 8.9 cm ( 3.5 ) 4 intern - 8.9 cm ( 3.5/ 2.5 met adapter) Uit breidbaar met HDD-backplane |
| Interface | 4x DisplayPort V1.4a, Audio (Mic-in / Line-in/-out), 3x LAN (RJ-45), 4x USB 3.2 (Gen1), 2x USB 3.2 (Gen2), 1x USB-C 3.2 (Gen2), COM1 (RS232), Optional: COM 2+3+4 |
| Compatibele besturingssystemen | Windows 10, Windows 11 |
| Merk moederbord | Kontron K3851-R 24-7 ready Made in Germany |
| Voldoet aan industriestandaarden | Dieses Gerät wird als informationstechnische Einrichtung (ITE) der Klasse B eingestuft und ist hauptsächlich für den Betrieb im Wohn- und Bürobereich vorgesehen. Durch das CE-Zeichen wird die Konformität mit den folgenden EU-Richtlinien bestätigt: (1) EMV-Richtlinie 2004/108/EG Elektromagnetische Verträglichkeit (2) Niederspannungsrichtlinie 2006/95/EG Elektrische Betriebsmittel zur Verwendung innerhalb bestimmter Spannungsgrenzen. |
| Muis |
| Inclusief muis | TERRA Wheel optical by Cherry |
| Grafisch |
| Geheugen ingebouwde grafische adapter | Dynamisch |
| Maximale resolutie ingebouwde grafische adapter | max. 1920x1200 |
| Grafische adapter | Intel UHD Graphics 630 (1050 MHz) Intel UHD Graphics 630 (1050 MHz) |
| On-board graphics adapter model | Intel UHD Graphics 630 (1050 MHz) Intel UHD Graphics 630 (1050 MHz) |
| Aantal displayports grafische adapter | 4x DisplayPort V1.4a |
| Energie |
| Stroombron | 80 Plus bronze voeding, geschikt voor 24/7 gebruik |
| Maximaal ingangsvermogen | 400 Watt |
| AC-adapter ingangsspanning | Wisselstroom 100/240 V ( 50/60 Hz ) |
| Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 5 °C - 35 °C |
| Aanbevolen relatieve luchtvochtigheid bij gebruik | 10-75% (niet condenserend ) |
| Netwerk |
| Ethernet LAN | Netwerkadapter - geïntegreerd |
| LAN controller | LAN 1: Intel i219LM with 10/100/1000 MBit/s (WoL, PXE, iAMT), LAN 2+3: Intel i225LM with 10/100/1000/2500 MBit/s (WoL, PXE) |
| Datalink-protocollen | Ethernet Fast ethernet Gigabit ethernet |
| Optische drive |
| Soort optische drive | DVD±RW |
| Invoerapparaat |
| Aansluiting | USB Opmerking: Toetsenbord optioneel verkrijgbaar. |
